Fiber QuickMap - Multimode Fiber Fault Locator And Troubleshooter By Fluke Networks

Fluke Networks’ Fiber QuickMap is an enterprise multimode fiber troubleshooter that quickly and efficiently locates connections and breaks in multimode fiber. To learn more visit: http://www.flukenetworks.com/datacom-cabling/fiber-testing/fiber-quickmap

By instantly providing distances to failures such as high loss and high reflectance incidents, Fiber QuickMap multimode fiber troubleshooter is the must-have network tester for any technician who works with multimode fiber.

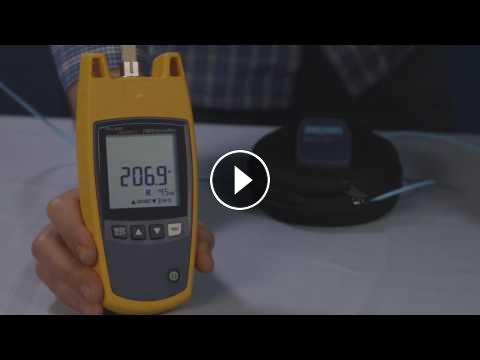

Here we have the Fiber QuickMap with our 50um launch fiber plugged in connected to our link under test. We are ready to take a measurement. The last or end event is displayed first and we can use the arrow keys to step through the events found. We are currently showing our last event at 259.3 meters. Pressing the down arrow we see our next event which has a good connection. Pressing the down arrow again and we see the bad splice in our demo artifact, which exceeds our preset loss limit in FQM. Both the reflectance and dB loss limits can be set in the menu. The Fiber QuickMap is capable of displaying up to 9 events and lengths can be displayed in either feet or meters.
