Configuring An ADTRAN Total Access 900e For SIP To PRI

Featured video
Your video will begin in 5

Thanks! Share it with your friends!

URL

You disliked this video. Thanks for the feedback!

Sorry, only registred users can create playlists.
URL


Added by Adtran in Adtran
323 Views

Description

This video walks through configuring an ADTRAN voice product for SIP to PRI. It is applicable to the Total Access 900(E) series as well as the following NetVanta products: NetVanta 6240, NetVanta 6250, NetVanta 6310, and the NetVanta 6355.

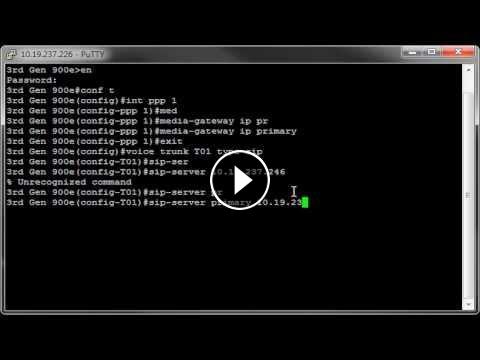

Commands issued during video:
3rd Gen 900e(config)#conf t
3rd Gen 900e(config)#int ppp 1
3rd Gen 900e(config-ppp 1)#media-gateway ip primary
3rd Gen 900e(config-ppp 1)#exit
3rd Gen 900e(config)#voice trunk T01 type sip
3rd Gen 900e(config-T01)#sip-server primary 10.19.237.246
3rd Gen 900e(config-T01)#register 7301 auth-name 7301 password 1234
3rd Gen 900e(config-T01)#exit
3rd Gen 900e(config)#int t1 0/4
3rd Gen 900e(config-t1 0/4)#tdm-group 1 timeslots 1-24
3rd Gen 900e(config-t1 0/4)#no shut
3rd Gen 900e(config-t1 0/4)#exit
3rd Gen 900e(config)#int pri 1
3rd Gen 900e(config-pri 1)#connect t1 0/4 tdm-group 1
3rd Gen 900e(config-pri 1)#no shut
3rd Gen 900e(config-pri 1)#exit
3rd Gen 900e(config)#isdn-group 1
3rd Gen 900e(config-isdn-group 1)#connect pri 1
3rd Gen 900e(config-isdn-group 1)#exit
3rd Gen 900e(config)#voice trunk T02 type isdn
3rd Gen 900e(config-T02)#connect isdn-group 1
3rd Gen 900e(config-T02)#exit
3rd Gen 900e(config)#voice grouped-trunk SIP
3rd Gen 900e(config-SIP)#accept $
3rd Gen 900e(config-SIP)#trunk T01
3rd Gen 900e(config-SIP)#exit
3rd Gen 900e(config)#voice grouped-trunk ISDN
3rd Gen 900e(config-ISDN)#trunk T02
3rd Gen 900e(config-ISDN)#accept NXXX
3rd Gen 900e(config-ISDN)#exit
3rd Gen 900e(config)#exit

For more ADTRAN Support resources check out our Support Community:
https://supportforums.adtran.com
http://www.adtran.com/supportcommunityvideo
